Debugging Workflows

Debugging is a critical skill that can save you hours of frustration and help you become a more effective Nextflow developer. Throughout your career, especially when you're starting out, you'll encounter bugs while building and maintaining your workflows. Learning systematic debugging approaches will help you identify and resolve issues quickly.

What you should know first

This guide assumes you've completed the Hello Nextflow training course and are comfortable with foundational Nextflow concepts including basic workflow structure, processes, channels, and configuration.

This guide focuses on debugging techniques and workflows. For comprehensive coverage of IDE features that support debugging (syntax highlighting, error detection, etc.), see the dedicated IDE Features for Nextflow Development side quest. We recommend completing the IDE training beforehand.

What you'll learn here

This guide focuses on systematic debugging techniques for Nextflow workflows:

  • Common error patterns: Understanding the most frequent types of errors and how to identify them
  • Syntax error debugging: Using IDE features and Nextflow error messages effectively
  • Channel debugging: Diagnosing data flow issues and channel structure problems
  • Process debugging: Investigating execution failures and resource issues
  • Built-in debugging tools: Leveraging Nextflow's trace, timeline, and reporting features
  • Advanced debugging techniques: Using resume, stub running, and other advanced approaches

You'll encounter various types of errors when developing Nextflow workflows:

  • Syntax errors: Code that doesn't conform to Nextflow DSL rules
  • Channel handling errors: Wrong data shapes or channel operations
  • Process input/output mismatches: Incompatible data types between processes
  • Configuration errors: Invalid parameters or resource specifications
  • Resource requirement issues: Insufficient memory, CPU, or storage
  • Container and software issues: Missing dependencies or version conflicts

While these errors can initially seem overwhelming, this guide will teach you systematic approaches to quickly identify, understand, and resolve each type. By the end, you'll have a robust debugging methodology that transforms frustrating error messages into clear roadmaps for solutions.


0. Warmup

Let's move into the debugging exercise directory:

cd side-quests/debugging

You can set VSCode to focus on this directory:

code .

The directory contains example workflows with various types of bugs that we'll use for practice:

tree .
Project structure
.
├── bad_bash_var.nf
├── bad_channel_shape.nf
├── bad_channel_shape_viewed_debug.nf
├── bad_channel_shape_viewed.nf
├── bad_number_inputs.nf
├── badpractice_syntax.nf
├── bad_resources.nf
├── bad_syntax.nf
├── buggy_workflow.nf
├── data
│   ├── sample_001.fastq.gz
│   ├── sample_002.fastq.gz
│   ├── sample_003.fastq.gz
│   ├── sample_004.fastq.gz
│   ├── sample_005.fastq.gz
│   └── sample_data.csv
├── exhausted.nf
├── invalid_process.nf
├── missing_output.nf
├── missing_software.nf
├── missing_software_with_stub.nf
├── nextflow.config
└── no_such_var.nf

1 directory, 22 files

These files represent common debugging scenarios you'll encounter in real-world development.

Takeaway

You're set up with example files containing various types of bugs that we'll debug systematically throughout this guide.

What's next?

Learn to identify and fix the most common type of error: syntax errors.


1. Syntax Errors

Syntax errors are the most common type of error you'll encounter when writing Nextflow code. They occur when the code does not conform to the expected syntax rules of the Nextflow DSL. These errors prevent your workflow from running at all, so it's important to learn how to identify and fix them quickly.

1.1. Missing braces

One of the most common syntax errors, and sometimes one of the more complex ones to debug is missing or mismatched brackets.

Let's start with a practical example.

Run the pipeline

nextflow run bad_syntax.nf

You'll see an error message like this:

Syntax error output
 N E X T F L O W   ~  version 25.04.3

Launching `bad_syntax.nf` [stupefied_bhabha] DSL2 - revision: ca6327fad2

ERROR ~ Script compilation error
- file : /workspaces/training/side-quests/debugging/bad_syntax.nf
- cause: Unexpected input: '{' @ line 3, column 23.
   process PROCESS_FILES {
                         ^

1 error

NOTE: If this is the beginning of a process or workflow, there may be a syntax error in the body, such as a missing or extra comma, for which a more specific error message could not be produced.

 -- Check '.nextflow.log' file for details

Key elements of syntax error messages:

  • File location: Shows exactly which file contains the error (- file : /workspaces/training/side-quests/debugging/bad_syntax.nf)
  • Error description: Explains what the parser found that it didn't expect (- cause: Unexpected input: '{')
  • Line and column: Points to where the parser encountered the problem (@ line 3, column 23.)
  • Context: Shows the problematic line with a caret (^) pointing to location of an unclosed brace (process PROCESS_FILES {)
  • Additional notes: Provides hints about common causes

Check the code

Now, let's examine bad_syntax.nf to understand what's causing the error:

bad_syntax.nf
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
// Missing closing brace for the process

workflow {

    // Create input channel
    input_ch = Channel.of('sample1', 'sample2', 'sample3')

    // Call the process with the input channel
    PROCESS_FILES(input_ch)
}

For the purpose of this example we've left a comment for you to show where the error is. The Nextflow VSCode extension should also be giving you some hints about what might be wrong, putting the mismatched brace in red and highlighting the premature end of the file:

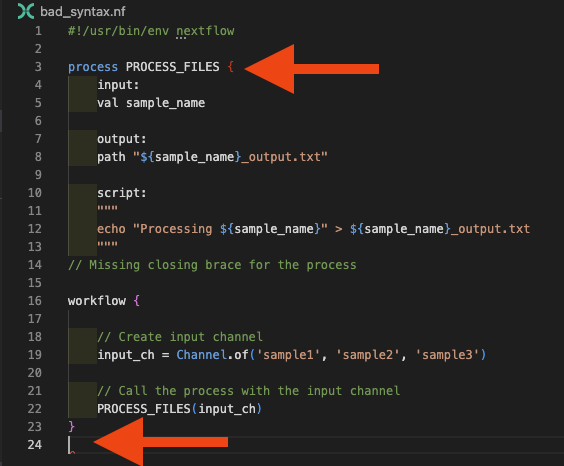

Bad syntax

Debugging strategy for bracket errors:

  1. Use VS Code's bracket matching (place cursor next to a bracket)
  2. Check the Problems panel for bracket-related messages
  3. Ensure each opening { has a corresponding closing }

Fix the code

Replace the comment with the missing closing brace:

bad_syntax.nf (fixed)
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
}  // Add the missing closing brace

workflow {

    // Create input channel
    input_ch = Channel.of('sample1', 'sample2', 'sample3')

    // Call the process with the input channel
    PROCESS_FILES(input_ch)
}

Run the pipeline

Now run the workflow again to confirm it works:

nextflow run bad_syntax.nf

1.2. Using incorrect process keywords or directives

Another common syntax error is an invalid process definition. This can happen if you forget to define required blocks or use incorrect directives in the process definition.

Run the pipeline

nextflow run invalid_process.nf

You'll see an error like:

Invalid process keyword error
 N E X T F L O W   ~  version 25.04.3

Launching `invalid_process.nf` [nasty_jepsen] DSL2 - revision: da9758d614

ERROR ~ Script compilation error
- file : /workspaces/training/side-quests/debugging/invalid_process.nf
- cause: Invalid process definition -- Unknown keyword `inputs` @ line 5, column 5.
       val sample_name
       ^

1 error


 -- Check '.nextflow.log' file for details

Check the code

Let's examine invalid_process.nf to see what's wrong:

invalid_process.nf
#!/usr/bin/env nextflow

process PROCESS_FILES {
    inputs:  // ERROR: Should be 'input' not 'inputs'
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
}

workflow {

    // Create input channel
    input_ch = Channel.of('sample1', 'sample2', 'sample3')

    // Call the process with the input channel
    PROCESS_FILES(input_ch)
}

The error message was quite straightforward - we're using inputs instead of the correct input directive. You'll also see that the Nextflow VSCode exension is unhappy:

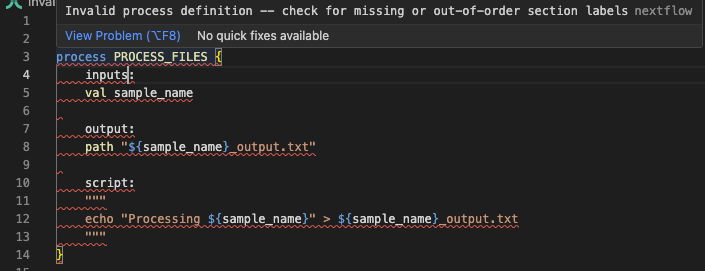

Invalid process message

Fix the code

Replace the incorrect keyword with the correct one by referencing the documentation:

invalid_process.nf (fixed)
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:  // Fixed: Changed 'inputs' to 'input'
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
}

workflow {

    // Create input channel
    input_ch = Channel.of('sample1', 'sample2', 'sample3')

    // Call the process with the input channel
    PROCESS_FILES(input_ch)
}

Run the pipeline

Now run the workflow again to confirm it works:

nextflow run invalid_process.nf

1.3. Using bad variable names

The variable names you use in your script blocks must be valid, derived either from inputs or from groovy code inserted before the script. But when you're wrangling complexity at the start of pipeline development, it's easy to make mistakes in variable naming, and Nextflow will let you know quickly.

Run the pipeline

nextflow run no_such_var.nf

You should get a failure that looks like this:

No such variable error
ERROR ~ Error executing process > 'PROCESS_FILES (3)'

Caused by:
  No such variable: undefined_var -- Check script 'no_such_var.nf' at line: 15


Source block:
  def output_prefix = "${sample_name}_processed"
  def timestamp = new Date().format("yyyy-MM-dd")
  """
  echo "Processing ${sample_name} on ${timestamp}" > ${output_prefix}.txt
  echo "Using undefined variable: ${undefined_var}" >> ${output_prefix}.txt  // ERROR: undefined_var not defined
  """

Tip: when you have fixed the problem you can continue the execution adding the option `-resume` to the run command line

 -- Check '.nextflow.log' file for details

Check the code

Let's examine no_such_var.nf:

no_such_var.nf
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    // Define variables in Groovy code before the script
    def output_prefix = "${sample_name}_processed"
    def timestamp = new Date().format("yyyy-MM-dd")

    """
    echo "Processing ${sample_name} on ${timestamp}" > ${output_prefix}.txt
    echo "Using undefined variable: ${undefined_var}" >> ${output_prefix}.txt  // ERROR: undefined_var not defined
    """
}

workflow {
    input_ch = Channel.of('sample1', 'sample2', 'sample3')
    PROCESS_FILES(input_ch)
}

The error message indicates that the variable is not recognized in the script template, and there you go- you should be able to see ${undefined_var} used in the script block, but not defined elsewhere.

Fix the code

If you get a 'No such variable' error, you can fix it by either defining the variable (by correcting input variable names or editing groovy code before the script), or by removing it from the script block if it's not needed:

no_such_var.nf (fixed)
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    // Define variables in Groovy code before the script
    def output_prefix = "${sample_name}_processed"
    def timestamp = new Date().format("yyyy-MM-dd")

    """
    echo "Processing ${sample_name} on ${timestamp}" > ${output_prefix}.txt
    """  // Removed the line with undefined_var
}

workflow {
    input_ch = Channel.of('sample1', 'sample2', 'sample3')
    PROCESS_FILES(input_ch)
}

Run the pipeline

Now run the workflow again to confirm it works:

nextflow run no_such_var.nf

1.4. Bad use of Bash variables

Starting out in Nextflow, it can be difficult to understand the difference between Nextflow (Groovy) and Bash variables. This can generate another form of the bad variable error that appears when trying to use variables in the Bash content of the script block.

Run the pipeline

nextflow run bad_bash_var.nf

This throws the following error:

ERROR ~ Error executing process > 'PROCESS_FILES (1)'

Caused by:
  No such variable: prefix -- Check script 'bad_bash_var.nf' at line: 11

Check the code

Let's examine bad_bash_var.nf to see what's causing the issue:

bad_bash_var.nf
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    prefix="${sample_name}_output"
    echo "Processing ${sample_name}" > ${prefix}.txt  # ERROR: ${prefix} is Groovy syntax, not Bash
    """
}

In this example, we're defining the prefix variable in Bash, but in a Nexflow process the $ syntax we used to refer to it (${prefix}) is interpretes as a Groovy variable, not Bash. The variable doesn't exist in the Groovy context, so we get a 'no such variable' error.

Fix the code

If you want to use a Bash variable, you must escape the dollar sign like this:

bad_bash_var.nf (fixed)
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    prefix="${sample_name}_output"
    echo "Processing ${sample_name}" > \${prefix}.txt  # Fixed: Escaped the dollar sign
    """
}

workflow {
    input_ch = Channel.of('sample1', 'sample2', 'sample3')
    PROCESS_FILES(input_ch)
}

This tells Nextflow to interpret this as a Bash variable.

Run the pipeline

Now run the workflow again to confirm it works:

nextflow run bad_bash_var.nf

Groovy vs Bash Variables

For simple variable manipulations like string concatenation or prefix/suffix operations, it's usually more readable to use Groovy variables in the script section rather than Bash variables in the script block:

1
2
3
4
5
6
script:
def output_prefix = "${sample_name}_processed"
def output_file = "${output_prefix}.txt"
"""
echo "Processing ${sample_name}" > ${output_file}
"""

This approach avoids the need to escape dollar signs and makes the code easier to read and maintain.

1.5. Bad practice syntax errors when using the VSCode extension

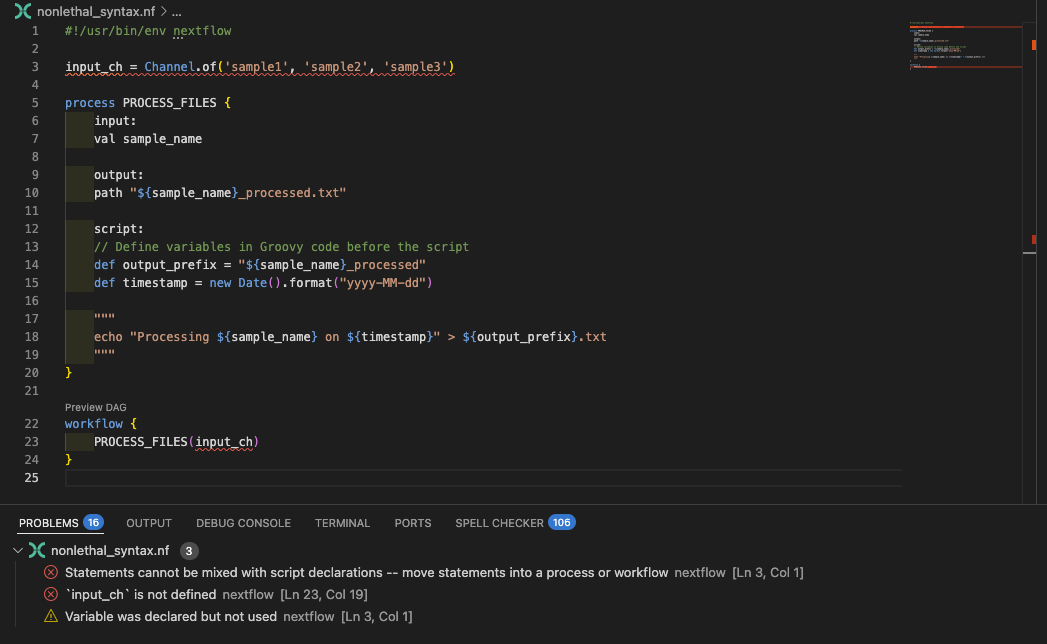

The Nextflow VSCode extension sometimes highlights issues that are not (yet) fatal errors in Nextflow. For example, it's currently possible to define processes outside of the workflow { block, but it's not good practice and the extension will highlight this as a potential issue.

Run the pipeline

nextflow run badpractice_syntax.nf

When you run this workflow, it will execute successfully:

Successful execution despite bad practice
N E X T F L O W   ~  version 25.04.3

Launching `badpractice_syntax.nf` [peaceful_euler] DSL2 - revision: 7b2c9a1d45

executor >  local (3)
[a1/b2c3d4] process > PROCESS_FILES (1) [100%] 3 of 3 ✔

Check the code

Let's examine badpractice_syntax.nf to see what the VSCode extension is warning about:

badpractice_syntax.nf
#!/usr/bin/env nextflow

input_ch = Channel.of('sample1', 'sample2', 'sample3')  # WARNING: Channel defined outside workflow

process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}_processed.txt"

    script:
    // Define variables in Groovy code before the script
    def output_prefix = "${sample_name}_processed"
    def timestamp = new Date().format("yyyy-MM-dd")

    """
    echo "Processing ${sample_name} on ${timestamp}" > ${output_prefix}.txt
    """
}

workflow {
    PROCESS_FILES(input_ch)
}

The VSCode extension will highlight the input_ch variable as being defined outside the workflow block, which is not recommended:

Non-lethal syntax error

This won't prevent execution but could lead to confusion or unexpected behavior in larger workflows.

Fix the code

Follow the VSCode extension's recommendation by moving the channel definition inside the workflow block:

badpractice_syntax.nf (fixed)
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}_processed.txt"

    script:
    // Define variables in Groovy code before the script
    def output_prefix = "${sample_name}_processed"
    def timestamp = new Date().format("yyyy-MM-dd")

    """
    echo "Processing ${sample_name} on ${timestamp}" > ${output_prefix}.txt
    """
}

workflow {
    input_ch = Channel.of('sample1', 'sample2', 'sample3')  # Moved inside workflow block
    PROCESS_FILES(input_ch)
}

Run the pipeline

Run the workflow again to confirm it still works and the VSCode warning is resolved:

nextflow run badpractice_syntax.nf

Tighter restrictions on such things will likely become enforced in future Nextflow versions, so it's good practice to keep your input channels defined within the workflow block, and in general to follow any other recommendations the extension makes.

Takeaway

You can systematically identify and fix syntax errors using Nextflow error messages and IDE visual indicators. Common syntax errors include missing braces, incorrect process keywords, undefined variables, and improper use of Bash vs. Nextflow variables. The VSCode extension helps catch many of these before runtime. With these syntax debugging skills in your toolkit, you'll be able to quickly resolve the most common Nextflow syntax errors and move on to tackling more complex runtime issues.

What's next?

Learn to debug more complex channel structure errors that occur even when syntax is correct.


2. Channel Structure Errors

Channel structure errors are more subtle than syntax errors because the code is syntactically correct, but the data shapes don't match what processes expect. Nextflow will try to run the pipeline, but might find that the number of inputs doesn't match what it expects and fail. These errors typically only appear at runtime and require an understanding of the data flowing through your workflow.

2.1. Wrong Number of Input Channels

This error occurs when you pass a different number of channels than a process expects.

Run the pipeline

nextflow run bad_number_inputs.nf
Wrong number of channels error
 N E X T F L O W   ~  version 25.04.3

Launching `bad_number_inputs.nf` [high_mendel] DSL2 - revision: 955705c51b

Process `PROCESS_FILES` declares 1 input channel but 2 were specified

 -- Check script 'bad_number_inputs.nf' at line: 23 or see '.nextflow.log' file for more details

Check the code

The error message clearly states that the process expects 1 input channel, but 2 were provided. Let's examine bad_number_inputs.nf:

bad_number_inputs.nf
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
        val sample_name  // Process expects only 1 input

    output:
        path "${sample_name}_output.txt"

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
}

workflow {

    // Create two separate channels
    samples_ch = Channel.of('sample1', 'sample2', 'sample3')
    files_ch = Channel.of('file1.txt', 'file2.txt', 'file3.txt')

    // ERROR: Passing 2 channels but process expects only 1
    PROCESS_FILES(samples_ch, files_ch)
}

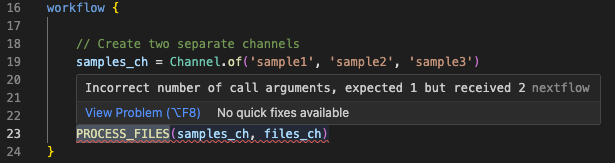

You should see the mismatched PROCESS_FILES call, supplying multiple input channels when the process only defines one. The VSCode extension will also under line process call in red, and supply a diagnostic message when you mouse over:

Incorrect number of args message

Fix the code

For this specific example, the process expects a single channel and doesn't require the second channel, so we can fix it by passing only the samples_ch channel:

bad_number_inputs.nf (fixed)
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
        val sample_name  // Process expects only 1 input

    output:
        path "${sample_name}_output.txt"

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
}

workflow {

    // Create two separate channels
    samples_ch = Channel.of('sample1', 'sample2', 'sample3')
    files_ch = Channel.of('file1.txt', 'file2.txt', 'file3.txt')

    // Fixed: Pass only the channel the process expects
    PROCESS_FILES(samples_ch)
}

Run the pipeline

nextflow run bad_number_inputs.nf

More commonly than this example, you might add additional inputs to a process and forget to update the workflow call accordingly, which can lead to this type of error. Fortunately, this is one of the easier-to-understand and fix errors, as the error message is quite clear about the mismatch.

2.2. Mismatched channel arity

Some channel structure errors are much more subtle and produce no errors at all. Probably the most common of these reflects a challenge that new Nextflow users face in understanding that queue channels can be exhausted and run out of items, meaning the workflow finishes prematurely.

Run the pipeline

nextflow run exhausted.nf

When you run this workflow, it will execute without error, processing a single sample:

Exhausted channel output
 N E X T F L O W   ~  version 25.04.3

Launching `exhausted.nf` [extravagant_gauss] DSL2 - revision: 08cff7ba2a

executor >  local (1)
[bd/f61fff] PROCESS_FILES (1) [100%] 1 of 1 ✔

Check the code

Let's examine exhausted.nf to see if that's right:

exhausted.nf
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
    val reference
    val sample_name

    output:
    path "${output_prefix}.txt"

    script:
    // Define variables in Groovy code before the script
    output_prefix = "${reference}_${sample_name}"
    def timestamp = new Date().format("yyyy-MM-dd")

    """
    echo "Processing ${sample_name} on ${timestamp}" > ${output_prefix}.txt
    """
}

workflow {

    reference_ch = Channel.of('baseline_reference')
    input_ch = Channel.of('sample1', 'sample2', 'sample3')

    PROCESS_FILES(reference_ch, input_ch)
}

The process only runs once instead of three times because the reference_ch channel is a queue channel that gets exhausted after the first process execution. When one channel is exhausted, the entire process stops, even if other channels still have items.

This is a common pattern where you have a single reference file that needs to be reused across multiple samples. The solution is to convert the reference channel to a value channel that can be reused indefinitely.

Fix the code

There are a couple of ways to address this depending on how many files are affected.

Option 1: You have a single reference file that you are re-using a lot. You can simply create a value channel type, which can be used over and over again. There are three ways to do this:

1. Use Channel.value():

exhausted.nf (fixed - Option 1a)
workflow {
    reference_ch = Channel.value('baseline_reference')  // Value channel can be reused
    input_ch = Channel.of('sample1', 'sample2', 'sample3')

    PROCESS_FILES(reference_ch, input_ch)
}

2. Use the first() operator:

exhausted.nf (fixed - Option 1b)
workflow {
    reference_ch = Channel.of('baseline_reference').first()  // Convert to value channel
    input_ch = Channel.of('sample1', 'sample2', 'sample3')

    PROCESS_FILES(reference_ch, input_ch)
}

3. Use the collect() operator:

exhausted.nf (fixed - Option 1c)
workflow {
    reference_ch = Channel.of('baseline_reference').collect()  // Convert to value channel
    input_ch = Channel.of('sample1', 'sample2', 'sample3')

    PROCESS_FILES(reference_ch, input_ch)
}

Option 2: In more complex scenarios, perhaps where you have multiple reference files for all samples in the sample channel, you can use the combine operator to create a new channel that combines the two channels into tuples:

exhausted.nf (fixed - Option 2)
workflow {
    reference_ch = Channel.of('baseline_reference')
    input_ch = Channel.of('sample1', 'sample2', 'sample3')
    combined_ch = reference_ch.combine(input_ch)  // Creates cartesian product

    PROCESS_FILES(combined_ch)
}

.combine() generates a cartesian product of the two channels, so each item in reference_ch will be paired with each item in input_ch. This allows the process to run for each sample while still using the reference.

Note: This requires the process input to be adjusted and therefore is not suitable in all situations.

Run the pipeline

Try one of the fixes above and run the workflow again:

nextflow run exhausted.nf

You should now see all three samples being processed instead of just one.

2.3. Wrong Channel Content Structure

When workflows reach a certain level of complexity, it can be a little difficult to keep track of the internal structures of each channel, and people commonly generate mismatches between what the process expects and what the channel actually contains. This is more subtle than the issue we discussed earlier, where the number of channels was incorrect. In this case, you can have the correct number of input channels, but the internal structure of one or more of those channels doesn't match what the process expects.

Run the pipeline

nextflow run bad_channel_shape.nf

You will see an error like this:

Channel structure error
Launching `bad_channel_shape.nf` [hopeful_pare] DSL2 - revision: ffd66071a1

executor >  local (3)
executor >  local (3)
[3f/c2dcb3] PROCESS_FILES (3) [  0%] 0 of 3 ✘
ERROR ~ Error executing process > 'PROCESS_FILES (1)'

Caused by:
  Missing output file(s) `[sample1, file1.txt]_output.txt` expected by process `PROCESS_FILES (1)`


Command executed:

  echo "Processing [sample1, file1.txt]" > [sample1, file1.txt]_output.txt

Command exit status:
  0

Command output:
  (empty)

Work dir:
  /workspaces/training/side-quests/debugging/work/d6/1fb69d1d93300bbc9d42f1875b981e

Tip: when you have fixed the problem you can continue the execution adding the option `-resume` to the run command line

 -- Check '.nextflow.log' file for details

Check the code

The square brackets in the error message provide the clue here - the process is treating the tuple as a single value, which is not what we want. Let's examine bad_channel_shape.nf:

bad_channel_shape.nf
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
        val sample_name  // Expects single value, gets tuple

    output:
        path "${sample_name}_output.txt"

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
}

workflow {

    // Channel emits tuples, but process expects single values
    input_ch = Channel.of(
      ['sample1', 'file1.txt'],
      ['sample2', 'file2.txt'],
      ['sample3', 'file3.txt']
    )
    PROCESS_FILES(input_ch)
}

You can see that we're generating a channel composed of tuples: ['sample1', 'file1.txt'], but the process expects a single value, val sample_name. The command executed shows that the process is trying to create a file named [sample3, file3.txt]_output.txt, which is not the intended output.

Fix the code

To fix this, if the process requires both inputs we could adjust the process to accept a tuple:

bad_channel_shape.nf (fixed - Option 1)
#!/usr/bin/env nextflow

process PROCESS_FILES {
    input:
        tuple val(sample_name), path(file_name)  // Fixed: Accept tuple

    output:
        path "${sample_name}_output.txt"

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
}

workflow {

    // Channel emits tuples, but process expects single values
    input_ch = Channel.of(
      ['sample1', 'file1.txt'],
      ['sample2', 'file2.txt'],
      ['sample3', 'file3.txt']
    )
    PROCESS_FILES(input_ch)
}

Or if, as in this example the process only needs the sample name, we can extract the first element of the tuple before passing it to the process:

bad_channel_shape.nf (fixed - Option 2)
workflow {

    // Channel emits tuples, but process expects single values
    input_ch = Channel.of(
      ['sample1', 'file1.txt'],
      ['sample2', 'file2.txt'],
      ['sample3', 'file3.txt']
    )
    PROCESS_FILES(input_ch.map { it[0] })  // Fixed: Extract first element
}

Run the pipeline

Pick one of the solutions and re-run the workflow:

nextflow run bad_channel_shape.nf

2.4. Channel Debugging Techniques

Using .view() for Channel Inspection

The most powerful debugging tool for channels is the .view() operator. With .view(), you can understand the shape of your channels at all stages to help with debugging.

Run the pipeline

Run bad_channel_shape_viewed.nf to see this in action:

nextflow run bad_channel_shape_viewed.nf

You'll see output like this:

Channel debugging output
 N E X T F L O W   ~  version 25.04.3

Launching `bad_channel_shape_viewed.nf` [maniac_poisson] DSL2 - revision: b4f24dc9da

executor >  local (3)
[c0/db76b3] PROCESS_FILES (3) [100%] 3 of 3 ✔
Channel content: [sample1, file1.txt]
Channel content: [sample2, file2.txt]
Channel content: [sample3, file3.txt]
After mapping: sample1
After mapping: sample2
After mapping: sample3

Check the code

Let's examine bad_channel_shape_viewed.nf to see how .view() is used:

bad_channel_shape_viewed.nf
workflow {

    // Channel emits tuples, but process expects single values
    input_ch = Channel.of(
      ['sample1', 'file1.txt'],
      ['sample2', 'file2.txt'],
      ['sample3', 'file3.txt']
    )
    .view { "Channel content: $it" }  // Debug: Show original channel content
    .map { tuple -> tuple[0] }        // Transform: Extract first element
    .view { "After mapping: $it" }    // Debug: Show transformed channel content

    PROCESS_FILES(input_ch)
}

Fix the code

To save you from using .view() operations excessively in future to understand channel content, it's advisable to add some comments to help:

bad_channel_shape_viewed.nf (with comments)
workflow {

    // Channel emits tuples, but process expects single values
    input_ch = Channel.of(
            ['sample1', 'file1.txt'],
            ['sample2', 'file2.txt'],
            ['sample3', 'file3.txt'],
        ) // [sample_name, file_name]
        .map { tuple -> tuple[0] } // sample_name

    PROCESS_FILES(input_ch)
}

This will become more important as your workflows grow in complexity and channel structure becomes more opaque.

Run the pipeline

nextflow run bad_channel_shape_viewed.nf

Takeaway

Many channel structure errors can be created with valid Nextflow syntax. You can debug channel structure errors by understanding data flow, using .view() operators for inspection, and recognizing error message patterns like square brackets indicating unexpected tuple structures.

What's next?

Learn about errors created by process definitions.


3. Process Structure Errors

Most of the errors you encounter related to processes will related to mistakes you have made in forming the command, or to issues related to the underlying software. That said, similarly to the channel issues above, you can make mistakes in the process definition that don't quality as syntax errors, but which will cause errors at run time.

3.1. Missing Output Files

One common error when writing processes is to do something that generates a mismatch between what the process expects and what is generated.

Run the pipeline

nextflow run missing_output.nf

You'll see an error like this:

Missing output files error
 N E X T F L O W   ~  version 25.04.3

Launching `missing_output.nf` [zen_stone] DSL2 - revision: 37ff61f926

executor >  local (3)
executor >  local (3)
[fd/2642e9] process > PROCESS_FILES (2) [ 66%] 2 of 3, failed: 2
ERROR ~ Error executing process > 'PROCESS_FILES (3)'

Caused by:
  Missing output file(s) `sample3.txt` expected by process `PROCESS_FILES (3)`


Command executed:

  echo "Processing sample3" > sample3_output.txt

Command exit status:
  0

Command output:
  (empty)

Work dir:
  /workspaces/training/side-quests/debugging/work/02/9604d49fb8200a74d737c72a6c98ed

Tip: when you have fixed the problem you can continue the execution adding the option `-resume` to the run command line

 -- Check '.nextflow.log' file for details

Check the code

The error message indicates that the process expected to produce an output file named sample3.txt, but the script actually creates sample3_output.txt. Let's examine the process definition in missing_output.nf:

missing_output.nf
process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}.txt"  // Expects: sample3.txt

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt  // Creates: sample3_output.txt
    """
}

You should see that there is a mismatch between the output file name in the output: block, and the one used in the script. This mismatch causes the process to fail. If you encounter this sort of error, go back and check that the outputs match between your process definition and your output block.

If the problem still isn't clear, check the process directory itself to identify the actual output files created. You can do this by looking in the work directory for the process:

 ls -h work/02/9604d49fb8200a74d737c72a6c98ed
sample3_output.txt

For this example this would highlight to us that a _output suffix is being incorporated into the output file name, contrary to our output: definition.

Fix the code

Fix the mismatch by making the output filename consistent:

missing_output.nf (fixed)
process PROCESS_FILES {
    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"  // Fixed: Match the script output

    script:
    """
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
}

Run the pipeline

nextflow run missing_output.nf

3.2. Missing software

Another class of errors occurs due to mistakes in software provisioning. missing_software.nf is a syntactically valid workflow, but it depends on some external software to provide the cowpy command it uses.

Run the pipeline

nextflow run missing_software.nf

You will see an error like this:

Missing software error
ERROR ~ Error executing process > 'PROCESS_FILES (3)'

Caused by:
  Process `PROCESS_FILES (3)` terminated with an error exit status (127)


Command executed:

  cowpy sample3 > sample3_output.txt

Command exit status:
  127

Command output:
  (empty)

Command error:
  .command.sh: line 2: cowpy: command not found

Work dir:
  /workspaces/training/side-quests/debugging/work/82/42a5bfb60c9c6ee63ebdbc2d51aa6e

Tip: you can try to figure out what's wrong by changing to the process work dir and showing the script file named `.command.sh`

 -- Check '.nextflow.log' file for details

The process doesn't have access to the command we're specifying. Sometimes this is because a script is present in the workflow bin directory, but has not been made executable. Other times it is because the software is not installed in the container or environment where the workflow is running.

Check the code

Look out for that 127 exit code - it tells you exactly the problem. Let's examine missing_software.nf:

missing_software.nf
process PROCESS_FILES {

    container 'community.wave.seqera.io/library/cowpy:1.1.5--3db457ae1977a273'

    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    cowpy ${sample_name} > ${sample_name}_output.txt
    """
}

Fix the code

We've been a little disingenuous here, and there's actually nothing wrong with the code. We just need to specify the necessary configuration to run the process in such a way that it has access to the command in question. In this case the process has a container definition, so all we need to do is run the workflow with Docker enabled.

Run the pipeline

We've set up a Docker profile for you in nextflow.config, so you can run the workflow with:

nextflow run missing_software.nf -profile docker

This should run successfully now.

Note

To learn more about how nextflow uses containers, go back to Hello Nextflow

3.3. Bad resource configuration

In production usage, you'll be configuring resources on your processes. For example memory defines the maximum amount of memory available to your process, and if the process exceeds that, your scheduler will typically kill the process and return an exit code of 137. We can't demonstrate that here because we're using the local executor, but we can show something similar with time.

Run the pipeline

bad_resources.nf has process configuration with an unrealistic bound on time of 1 millisecond:

nextflow run bad_resources.nf -profile docker

This gives us an error:

Resource time limit error
ERROR ~ Error executing process > 'PROCESS_FILES (1)'

Caused by:
Process exceeded running time limit (1ms)

Check the code

Let's examine bad_resources.nf:

bad_resources.nf
process PROCESS_FILES {

    time '1 ms'  // ERROR: Unrealistic time limit

    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    sleep 1  // Takes 1 second, but time limit is 1ms
    cowpy ${sample_name} > ${sample_name}_output.txt
    """
}

We know the process will take longer than a second (we've added a sleep in there to make sure), but the process is set to time out after 1 millisecond. Someone has been a little unrealistic with their configuration!

Fix the code

Increase the time limit to a realistic value:

bad_resources.nf (fixed)
process PROCESS_FILES {

    time '100 s'  // Fixed: Realistic time limit

    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    sleep 1
    cowpy ${sample_name} > ${sample_name}_output.txt
    """
}

Run the pipeline

nextflow run bad_resources.nf -profile docker

If you make sure to read your error messages failures like this should not puzzle you for too long. But make sure you understand the resource requirements of the commands you are running so that you can configure your resource directives appropriately.

3.4. Process Debugging Techniques

When processes fail or behave unexpectedly, you need systematic techniques to investigate what went wrong. The work directory contains all the information you need to debug process execution.

Using Work Directory Inspection

The most powerful debugging tool for processes is examining the work directory. When a process fails, Nextflow creates a work directory for that specific process execution containing all the files needed to understand what happened.

Run the pipeline

Let's use the missing_output.nf example from earlier to demonstrate work directory inspection (re-generate an output naming mismatch if you need to):

nextflow run missing_output.nf

You'll see an error like this:

Missing output error
  Missing output file(s) `sample2.txt` expected by process `PROCESS_FILES (2)`

Check the work directory

When you get this error, the work directory contains all the debugging information. Find the work directory path from the error message and examine its contents:

# Find the work directory from the error message
ls work/02/9604d49fb8200a74d737c72a6c98ed/

You can then examine the key files:

Check the Command Script

The .command.sh file shows exactly what command was executed:

# View the executed command
cat work/02/9604d49fb8200a74d737c72a6c98ed/.command.sh

This reveals:

  • Variable substitution: Whether Nextflow variables were properly expanded
  • File paths: Whether input files were correctly located
  • Command structure: Whether the script syntax is correct

Common issues to look for:

  • Missing quotes: Variables containing spaces need proper quoting
  • Wrong file paths: Input files that don't exist or are in wrong locations
  • Incorrect variable names: Typos in variable references
  • Missing environment setup: Commands that depend on specific environments
Check Error Output

The .command.err file contains the actual error messages:

# View error output
cat work/02/9604d49fb8200a74d737c72a6c98ed/.command.err

This file will show:

  • Exit codes: 127 (command not found), 137 (killed), etc.
  • Permission errors: File access issues
  • Software errors: Application-specific error messages
  • Resource errors: Memory/time limit exceeded
Check Standard Output

The .command.out file shows what your command produced:

# View standard output
cat work/02/9604d49fb8200a74d737c72a6c98ed/.command.out

This helps verify:

  • Expected output: Whether the command produced the right results
  • Partial execution: Whether the command started but failed partway through
  • Debug information: Any diagnostic output from your script
Check the Exit Code

The .exitcode file contains the exit code for the process:

# View exit code
cat work/*/*/.exitcode

Common exit codes and their meanings:

  • Exit code 127: Command not found - check software installation
  • Exit code 137: Process killed - check memory/time limits
Check File Existence

When processes fail due to missing output files, check what files were actually created:

# List all files in the work directory
ls -la work/02/9604d49fb8200a74d737c72a6c98ed/

This helps identify:

  • File naming mismatches: Output files with different names than expected
  • Permission issues: Files that couldn't be created
  • Path problems: Files created in wrong directories

In our example earlier, this confirmed to us that while our expected sample3.txt wasn't present, sample3_output.txt was:

 ls -h work/02/9604d49fb8200a74d737c72a6c98ed
sample3_output.txt

Systematic Process Debugging Approach

  1. Check the error message - it often points directly to the problem
  2. Examine .command.sh - verify the command structure and variables
  3. Check .command.err - understand the specific error
  4. Verify file existence - ensure inputs/outputs are where expected
  5. Test the command manually - run .command.run in the work directory
  6. Check resource limits - verify memory/time allocations are appropriate

Takeaway

Process debugging requires systematic examination of work directories and understanding of error patterns. Key techniques include inspecting .command.sh for variable substitution issues, checking .command.err for specific error messages, and verifying file existence to identify naming mismatches. Exit codes like 127 (command not found) and 137 (process killed) provide immediate diagnostic clues.

What's next?

Learn about Nextflow's built-in debugging tools and systematic approaches to troubleshooting.


4. Built-in Debugging Tools and Advanced Techniques

Nextflow provides several powerful built-in tools for debugging and analyzing workflow execution. These tools help you understand what went wrong, where it went wrong, and how to fix it efficiently.

In Hello Nextflow you already saw the log and error files that nextflow produces for each task in the work directory:

  • .command.sh: The exact script that was executed
  • .command.run: The command wrapper used to run the task. This includes environment variables and other settings, for example the container image used.
  • .command.err: Standard error output (most important for debugging)
  • .command.out: Standard output from the command
  • .command.log: Nextflow's execution log

We will use these files to debug the workflow.

4.1. Real-time Process Output

Sometimes you need to see what's happening inside running processes. You can enable real-time process output, which shows you exactly what each task is doing as it executes.

Run the pipeline

bad_channel_shape_viewed.nf from our earlier examples printed channel content using .view(), but we can also use the debug directive to echo variables from within the process itself, which we demonstrate in bad_channel_shape_viewed_debug.nf. Run the workflow:

nextflow run bad_channel_shape_viewed_debug.nf

You will see output like this:

Real-time process output
 N E X T F L O W   ~  version 25.04.3

Launching `bad_channel_shape_viewed_debug.nf` [agitated_crick] DSL2 - revision: ea3676d9ec

executor >  local (3)
[c6/2dac51] process > PROCESS_FILES (3) [100%] 3 of 3 ✔
Channel content: [sample1, file1.txt]
Channel content: [sample2, file2.txt]
Channel content: [sample3, file3.txt]
After mapping: sample1
After mapping: sample2
After mapping: sample3
Sample name inside process is sample2

Sample name inside process is sample1

Sample name inside process is sample3

Check the code

Let's examine bad_channel_shape_viewed_debug.nf to see how the debug directive works:

bad_channel_shape_viewed_debug.nf
process PROCESS_FILES {
    debug true  // Enable real-time output

    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    echo "Sample name inside process is ${sample_name}"
    echo "Processing ${sample_name}" > ${sample_name}_output.txt
    """
}

The debug directive can be a quick and convenient way to understand the environment of a process.

4.2. Preview Mode

Sometimes you want to catch problems before any processes run. Nextflow provides a flag for this kind of proactive debugging: -preview.

Run the pipeline

The preview mode lets you test workflow logic without executing commands. This can be quite useful for quickly checking the structure of your workflow and ensuring that processes are connected correctly without running any actual commands.

For example, for our first syntax error from earlier:

nextflow run bad_syntax.nf -preview

!!! note:

If you fixed the file, reintroduce the syntax error by changing `input` to `inputs` before you run the command

You'll see output like this:

Preview mode output
 N E X T F L O W   ~  version 25.04.3

Launching `bad_syntax.nf` [sick_fermi] DSL2 - revision: ca6327fad2

ERROR ~ Script compilation error
- file : /workspaces/training/side-quests/debugging/bad_syntax.nf
- cause: Unexpected input: '{' @ line 3, column 23.
   process PROCESS_FILES {
                         ^

1 error

NOTE: If this is the beginning of a process or workflow, there may be a syntax error in the body, such as a missing or extra comma, for which a more specific error message could not be produced.

 -- Check '.nextflow.log' file for details

Preview mode is particularly useful for catching syntax errors early without running any processes. It validates the workflow structure and process connections before execution.

4.3. Stub Running for Logic Testing

Sometimes errors are difficult to debug because commands take too long, require special software, or fail for complex reasons. Stub running lets you test workflow logic without executing the actual commands.

Run the pipeline

When you're developing a Nextflow process, you can use the stub directive to define 'dummy' commands that generate outputs of the correct form without running the real command. This approach is particularly valuable when you want to verify that your workflow logic is correct before dealing with the complexities of the actual software.

For example, remember our missing_software.nf from earlier? The one where we had missing software that prevented the workflow running until we added -profile docker? missing_software_with_stub.nf is a very similar workflow. If we run it in the same way, we will generate the same error:

nextflow run missing_software_with_stub.nf
Missing software error with stub
ERROR ~ Error executing process > 'PROCESS_FILES (3)'

Caused by:
  Process `PROCESS_FILES (3)` terminated with an error exit status (127)


Command executed:

  cowpy sample3 > sample3_output.txt

Command exit status:
  127

Command output:
  (empty)

Command error:
  .command.sh: line 2: cowpy: command not found

Work dir:
  /workspaces/training/side-quests/debugging/work/82/42a5bfb60c9c6ee63ebdbc2d51aa6e

Tip: you can try to figure out what's wrong by changing to the process work dir and showing the script file named `.command.sh`

 -- Check '.nextflow.log' file for details

However, this workflow will not produce errors if we run it with -stub-run, even without the docker profile:

nextflow run missing_software_with_stub.nf -stub-run

Check the code

Let's examine missing_software_with_stub.nf:

missing_software.nf (with stub)
process PROCESS_FILES {

    container 'community.wave.seqera.io/library/cowpy:1.1.5--3db457ae1977a273'

    input:
    val sample_name

    output:
    path "${sample_name}_output.txt"

    script:
    """
    cowpy ${sample_name} > ${sample_name}_output.txt
    """

    stub:
    """
    touch ${sample_name}_output.txt
    """
}

Relative to missing_software.nf, this process has a stub: directive specifying a command to be used instead of the one specified in script:, in the event that that Nextflow is run in stub mode.

The touch command we're using here doesn't depend on any software or appropriate inputs, and will run in all situations, allowing us to debug workflow logic without worrying about the process internals.

Stub running helps debug:

  • Channel structure and data flow
  • Process connections and dependencies
  • Parameter propagation
  • Workflow logic without software dependencies

4.4. Note on resume and Incremental Debugging

Once you've identified a problem using the techniques above, you need an efficient way to test your fixes without wasting time re-running successful parts of your workflow. This is where Nextflow's resume functionality becomes invaluable for debugging.

You will have encountered -resume if you've worked through Hello Nextflow, and it's important that you make good use of it when debugging to save yourself waiting while the proccesses before your problem process run.

Resume debugging strategy:

  1. Run workflow until failure
  2. Examine work directory for failed task
  3. Fix the specific issue
  4. Resume to test only the fix
  5. Repeat until workflow completes

4.5. Note on resource and Memory Debugging

Not all workflow failures are due to syntax or logic errors. Many stem from system resource constraints - processes that run out of memory, exceed time limits, or compete for system resources. These resource problems often manifest as specific exit codes that give you immediate clues about what went wrong:

  • Exit 130: Process killed (often CTRL+C)
  • Exit 137: Process killed by system (usually out of memory)
  • Exit 127: Command not found

When a Nextflow pipeline fails, check whether the error originates from Nextflow itself or from the underlying tool. Nextflow propagates host system errors directly, so exit codes and error messages from your processes will appear in the Nextflow output.

4.6. Systematic Debugging Approach

Now that you've learned individual debugging techniques - from trace files and work directories to preview mode, stub running, and resource monitoring - let's tie them together into a systematic methodology. Having a structured approach prevents you from getting overwhelmed by complex errors and ensures you don't miss important clues.

This methodology combines all the tools we've covered into an efficient workflow:

Four-Phase Debugging Method:

Phase 1: Syntax Error Resolution (5 minutes)

  1. Check for red underlines in VSCode or your IDE
  2. Run nextflow run workflow.nf -preview to identify syntax issues
  3. Fix all syntax errors (missing braces, trailing commas, etc.)
  4. Ensure the workflow parses successfully before proceeding

Phase 2: Quick Assessment (5 minutes)

  1. Read runtime error messages carefully
  2. Check if it's a runtime, logic, or resource error
  3. Use preview mode to test basic workflow logic

Phase 3: Detailed Investigation (15-30 minutes)

  1. Find the work directory of the failed task
  2. Examine log files
  3. Add .view() operators to inspect channels
  4. Use -stub-run to test workflow logic without execution

Phase 4: Fix and Validate (15 minutes)

  1. Make minimal targeted fixes
  2. Test with resume: nextflow run workflow.nf -resume
  3. Verify complete workflow execution

Debugging Configuration Profile

To make this systematic approach even more efficient, you can create a dedicated debugging configuration that automatically enables all the tools you need:

nextflow.config (debug profile)
profiles {
    debug {
        process {
            debug = true
            cleanup = false

            // Conservative resources for debugging
            maxForks = 1
            memory = '2.GB'
            cpus = 1
        }
    }
}

Then you can run the pipeline with this profile enabled:

nextflow run workflow.nf -profile debug

4.7. Practical Debugging Exercise

Now it's time to put the systematic debugging approach into practice. The workflow buggy_workflow.nf contains several common errors that represent the types of issues you'll encounter in real-world development.

Exercise

Use the systematic debugging approach to identify and fix all errors in buggy_workflow.nf. This workflow attempts to process sample data from a CSV file but contains multiple intentional bugs representing common debugging scenarios.

Start by running the workflow to see the first error:

nextflow run buggy_workflow.nf

Apply the four-phase debugging method you've learned:

Phase 1: Syntax Error Resolution - Check for red underlines in VSCode or your IDE - Run nextflow run workflow.nf -preview to identify syntax issues - Fix all syntax errors (missing braces, trailing commas, etc.) - Ensure the workflow parses successfully before proceeding

Phase 2: Quick Assessment - Read runtime error messages carefully - Identify whether errors are runtime, logic, or resource-related - Use -preview mode to test basic workflow logic

Phase 3: Detailed Investigation - Examine work directories for failed tasks - Add .view() operators to inspect channels - Check log files in work directories - Use -stub-run to test workflow logic without execution

Phase 4: Fix and Validate - Make targeted fixes - Use -resume to test fixes efficiently - Verify complete workflow execution

Debugging Tools at Your Disposal:

# Preview mode for syntax checking
nextflow run buggy_workflow.nf -preview

# Debug profile for detailed output
nextflow run buggy_workflow.nf -profile debug

# Stub running for logic testing
nextflow run buggy_workflow.nf -stub-run

# Resume after fixes
nextflow run buggy_workflow.nf -resume

Solution

The buggy_workflow.nf contains 9 or 10 distinct errors (depending how you count) covering all major debugging categories. Here's a systematic breakdown of each error and how to fix it

Let's start with those syntax errors:

Error 1: Syntax Error - Trailing Comma

output:
    path "${sample_id}_result.txt",  // ERROR: Trailing comma
Fix: Remove the trailing comma
output:
    path "${sample_id}_result.txt"

Error 2: Syntax Error - Missing Closing Brace

script:
"""
echo "Processing: ${sample}"
cat ${input_file} > ${sample}_result.txt
"""
// ERROR: Missing closing brace for processFiles process
Fix: Add the missing closing brace
"""
echo "Processing: ${sample_id}"
cat ${input_file} > ${sample_id}_result.txt
"""
}  // Add missing closing brace

Error 3: Variable Name Error

echo "Processing: ${sample}"     // ERROR: should be sample_id
cat ${input_file} > ${sample}_result.txt  // ERROR: should be sample_id
Fix: Use the correct input variable name
echo "Processing: ${sample_id}"
cat ${input_file} > ${sample_id}_result.txt

Error 4: Undefined Variable Error

heavy_ch = heavyProcess(sample_ids)  // ERROR: sample_ids undefined
Fix: Use the correct channel and extract sample IDs
heavy_ch = heavyProcess(input_ch)

At this point the workflow will run, but we'll still be getting errors (e.g. Path value cannot be null in processFiles), caused by bad channel structure.

Error 5: Channel Structure Error - Wrong Map Output

.map { row -> row.sample_id }  // ERROR: processFiles expects tuple
Fix: Return the tuple structure that processFiles expects
.map { row -> [row.sample_id, file(row.fastq_path)] }

But this will break our for for running heavyProcess() above, so we'll need to use a map to pass just the sample IDs to that process:

Error 6: Bad channel structure for heavyProcess

heavy_ch = heavyProcess(input_ch)  // ERROR: input_ch now has 2 elements per emission- heavyProcess only needs 1 (the first)
Fix: Use the correct channel and extract sample IDs
heavy_ch = heavyProcess(input_ch.map{it[0]})

Now we get a but further but receive an error about No such variable: i, because we didn't escape a Bash variable.

Error 7: Bash Variable Escaping Error

echo "Heavy computation $i for ${sample_id}"  // ERROR: $i not escaped
Fix: Escape the bash variable
echo "Heavy computation \${i} for ${sample_id}"

Now we get Process exceeded running time limit (1ms), so we fix the run time limit for the relevant process:

Error 8: Resource Configuration Error

time '1 ms'  // ERROR: Unrealistic time limit
Fix: Increase to a realistic time limit
time '100 s'

Next we have a Missing output file(s) errror to resolve:

Error 9: Output File Name Mismatch

done > ${sample_id}.txt  // ERROR: Wrong filename, should match output declaration
Fix: Match the output declaration
done > ${sample_id}_heavy.txt

The first two processes ran, but not the third.

Error 10: Output File Name Mismatch

file_ch = Channel.fromPath("*.txt") // Error: attempting to take input from the pwd rather than a process
handleFiles(file_ch)
Fix: Take the output from the previous process
handleFiles(heavyProcess.out)

With that, the whole workflow should run.

Complete Corrected Workflow:

#!/usr/bin/env nextflow

/*
* Buggy workflow for debugging exercises
* This workflow contains several intentional bugs for learning purposes
*/

// Parameters with missing validation
params.input = 'data/sample_data.csv'
params.output = 'results'

/*
* Process with input/output mismatch
*/
process processFiles {
    publishDir "${params.output}/processed", mode: 'copy'

    input:
        tuple val(sample_id), path(input_file)

    output:
        path "${sample_id}_result.txt"

    script:
    """
    echo "Processing: ${sample_id}"
    cat ${input_file} > ${sample_id}_result.txt
    """
}

/*
* Process with resource issues
*/
process heavyProcess {
    publishDir "${params.output}/heavy", mode: 'copy'

    time '100 s'

    input:
        val sample_id

    output:
        path "${sample_id}_heavy.txt"

    script:
    """
    # Simulate heavy computation
    for i in {1..1000000}; do
        echo "Heavy computation \$i for ${sample_id}"
    done > ${sample_id}_heavy.txt
    """
}

/*
* Process with file handling issues
*/
process handleFiles {
    publishDir "${params.output}/files", mode: 'copy'

    input:
        path input_file

    output:
        path "processed_${input_file}"

    script:
    """
    if [ -f "${input_file}" ]; then
        cp ${input_file} processed_${input_file}
    fi
    """
}

/*
* Main workflow with channel issues
*/
workflow {

    // Channel with incorrect usage
    input_ch = Channel
        .fromPath(params.input)
        .splitCsv(header: true)
        .map { row -> [row.sample_id, file(row.fastq_path)] }

    processed_ch = processFiles(input_ch)

    heavy_ch = heavyProcess(input_ch.map{it[0]})

    handleFiles(heavyProcess.out)
}

Error Categories Covered:

  • Syntax errors: Missing braces, trailing commas, undefined variables
  • Channel structure errors: Wrong data shapes, undefined channels
  • Process errors: Output file mismatches, variable escaping
  • Resource errors: Unrealistic time limits

Key Debugging Lessons:

  1. Read error messages carefully - they often point directly to the problem
  2. Use systematic approaches - fix one error at a time and test with -resume
  3. Understand data flow - channel structure errors are often the most subtle
  4. Check work directories - when processes fail, the logs tell you exactly what went wrong

Takeaway

Effective Nextflow debugging combines understanding error messages, using built-in tools (trace files, work directories, preview mode), and applying systematic approaches. Practice with these examples builds the experience needed to debug real-world workflow issues efficiently.


Summary

In this side quest, we've learned:

1. How to identify and fix syntax errors:

  • Interpreting Nextflow error messages and locating problems
  • Common syntax errors: missing braces, incorrect keywords, undefined variables
  • Distinguishing between Nextflow (Groovy) and Bash variables
  • Using VS Code extension features for early error detection

2. How to debug channel structure issues:

  • Understanding channel cardinality and exhaustion issues
  • Debugging channel content structure mismatches
  • Using .view() operators for channel inspection
  • Recognizing error patterns like square brackets in output

3. How to troubleshoot process execution problems:

  • Diagnosing missing output file errors
  • Understanding exit codes (127 for missing software, 137 for memory issues)
  • Investigating work directories and command files
  • Configuring resources appropriately

4.How to use Nextflow's built-in debugging tools:

  • Leveraging preview mode and real-time debugging
  • Implementing stub running for logic testing
  • Applying resume for efficient debugging cycles
  • Following a four-phase systematic debugging methodology

Debugging is a critical part of pipeline development that helps ensure:

  • Your code works as expected
  • Problems can be identified and fixed quickly
  • Workflows run reliably in different environments
  • Development time is spent efficiently
  • Issues are resolved systematically rather than through trial and error

What's next?

Check out the Nextflow documentation for more advanced debugging features and best practices. You might want to:

  • Add more comprehensive error handling to your workflows
  • Write tests for edge cases and error conditions using nf-test
  • Set up monitoring and logging for production workflows
  • Learn about other debugging tools like profiling and performance analysis
  • Explore more advanced debugging techniques for complex workflows

Remember: Effective debugging is a skill that improves with practice. The systematic methodology and comprehensive toolkit you've developed here will serve you well throughout your Nextflow development journey.
